What is WPF?

WPF, (Windows Presentation Foundation) is a user interface framework by Microsoft to create applications based on Windows desktop. It is the constituent of the “.NET” and enables a developer to construct a user interface that is rich, interactive and modern and a combination of XAML (to give layout and design) and C# similar to provide backend logic.

WPF programs have a reputation of flexibility, excellent performance, good data-binding, media integration, templates and custom controls. It is popular in business and enterprise circles to create internal applications, desktop applications, and data driven UIs.

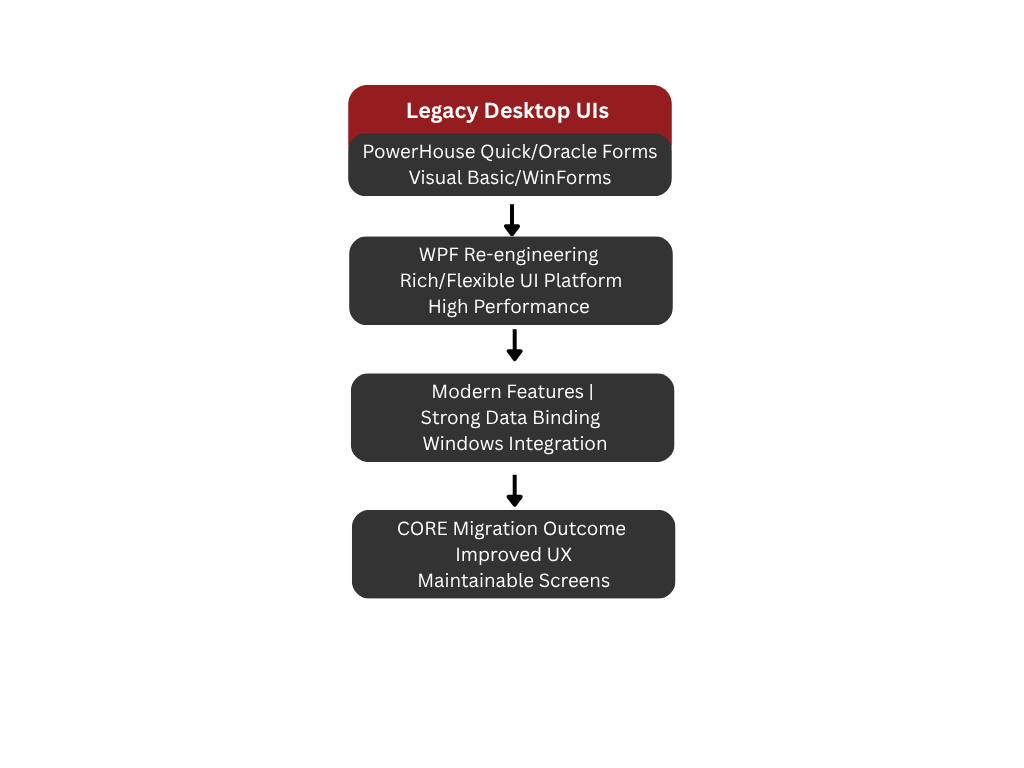

Using WPF in Legacy Migration and Modern Application Development Projects

Windows Presentation Foundation (WPF) is commonly used as a modern replacement for legacy desktop interfaces originally built using PowerHouse Quick, Oracle Forms, Visual Basic, WinForms, or proprietary UI frameworks. WPF provides a rich, flexible, and maintainable UI platform ideal for on-premise desktop applications that require high performance, strong data binding, and deep integration with Windows environments. During a CORE migration project, legacy screens, workflows, and data entry forms are re-engineered into WPF applications that deliver a significantly improved user experience.

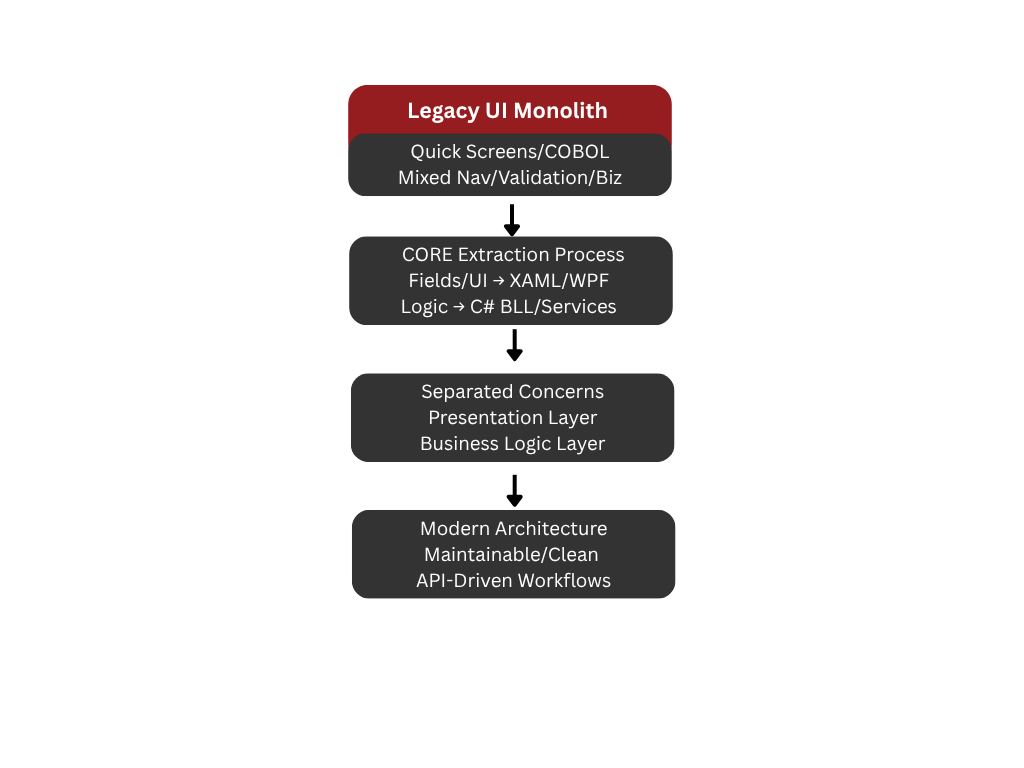

What Happens to Legacy UI Logic During the Migration?

Legacy user interfaces often mix navigation logic, validation rules, field definitions, and business workflows directly within screen definitions. Quick screens, form handlers, or COBOL screen sections frequently embed both presentation elements and procedural logic in a single layer. CORE separates these concerns during modernization. Field definitions, UI elements, and layout metadata are extracted and mapped to XAML-based WPF screens. Validation, field events, and procedural workflows are moved to the Business Logic Layer, typically implemented using C#, services, and API calls. This separation produces a cleaner and more maintainable architecture.

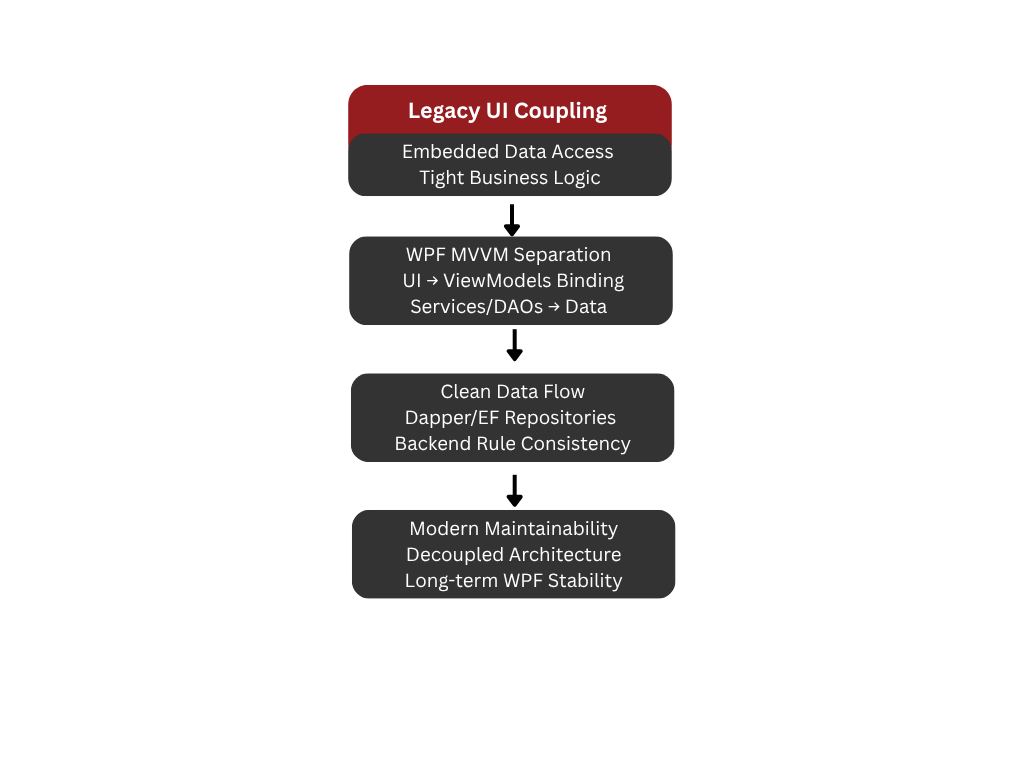

What Happens to Data Models and Interaction Logic?

WPF delegates business operations to services rather than embedding data access logic within the UI. Through MVVM (Model-View-ViewModel) patterns, WPF binds UI components to strongly typed objects, ensuring clean data flow and long-term maintainability. Data retrieved from the relational database—accessed through Dapper, Entity Framework, or DAO repositories—is exposed to the UI only through view models. This ensures that modernized WPF applications remain consistent with backend business rules while avoiding the tightly coupled logic characteristic of legacy screens.

How WPF Fits into the Modern Application Architecture

WPF occupies the Presentation Layer for desktop scenarios. It interacts exclusively with REST APIs or service calls provided by the Business Logic Layer. The Data Access Layer remains entirely separate and encapsulated. This architecture replaces legacy environments where UI screens directly accessed databases or files. Instead, WPF communicates with backend services that expose business workflows, security permissions, and validation rules. The result is a UI that is easier to update, safer to maintain, and more scalable across different business modules.

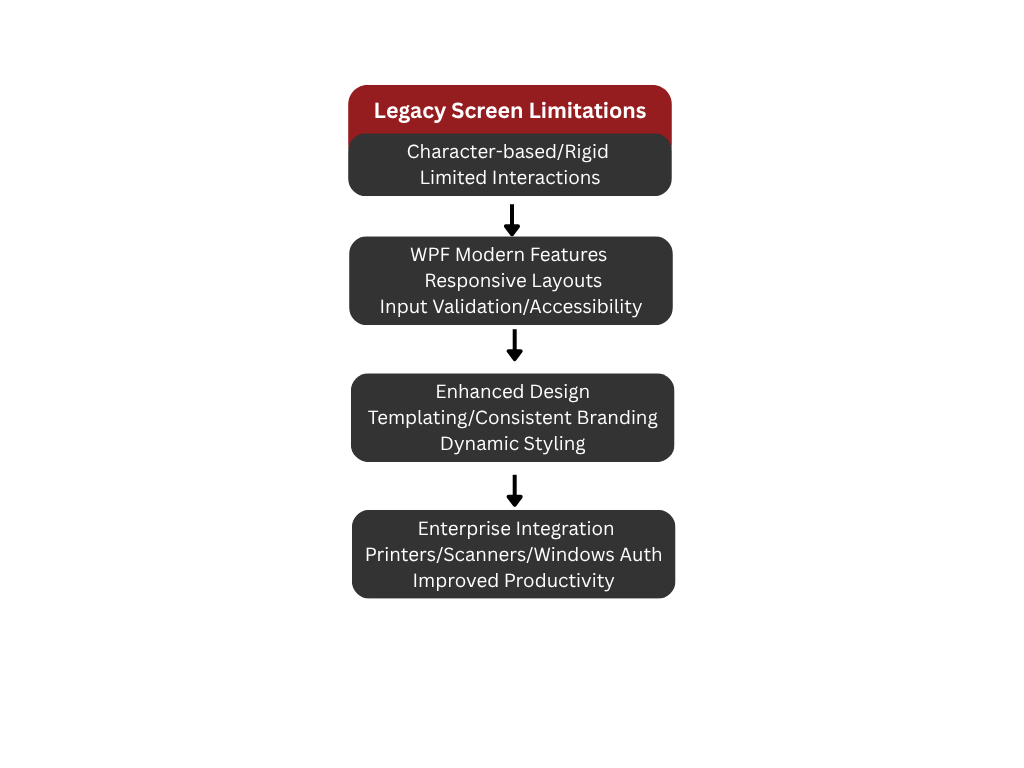

How WPF Enhances the User Experience in Migrated Systems

WPF enables modern UI design patterns, responsive layouts, input validation, accessibility features, dynamic styling, and improved user interactions. Legacy screens, often limited by character-based layouts or rigid form designs, are replaced with rich interfaces that improve productivity and clarity. WPF’s templating and styling capabilities allow organizations to apply consistent branding and aesthetics across the modernized system. Additionally, WPF can integrate with local resources such as printers, scanners, and Windows authentication, making it a strong choice for enterprise-grade desktop applications.

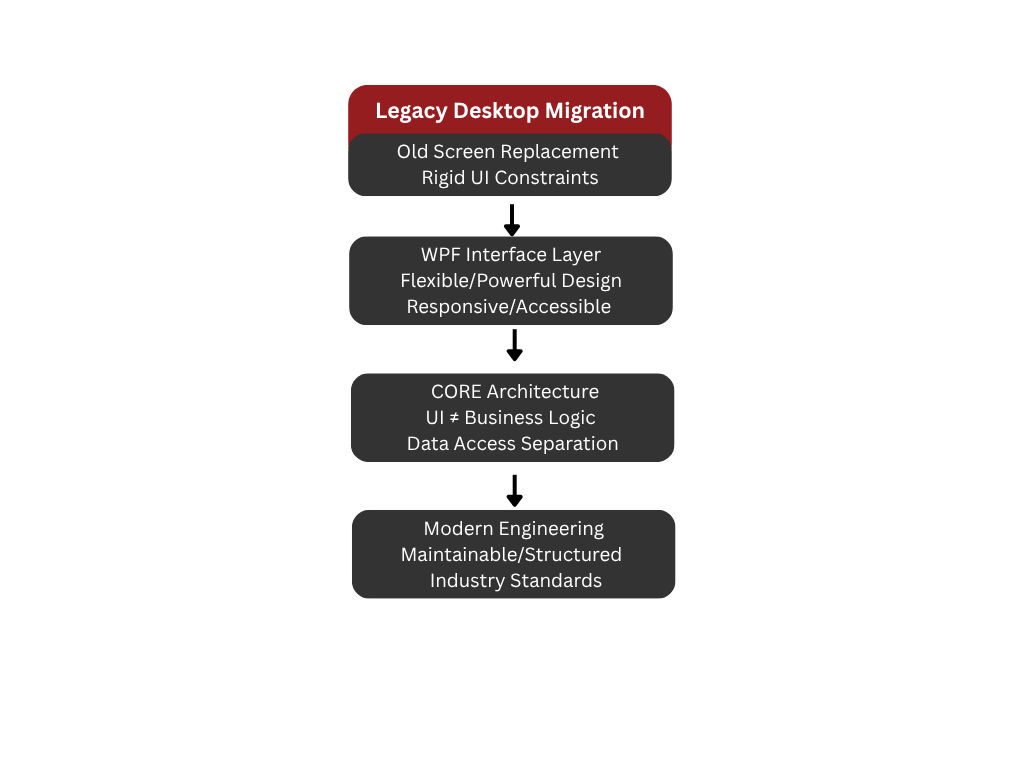

Conclusion

WPF provides a powerful, flexible, and modern interface layer for organizations migrating from legacy desktop screens. By separating UI presentation from business logic and data access, CORE ensures that modernized WPF applications remain cleanly structured, maintainable, and aligned with today’s software engineering standards.

How WPF Applications Are Used

WPF is mostly employed in the development of Windows applications that need a strong UI component, individual design, and direct contacting of local machine resources.

Business and Enterprise Applications

WPF has found common use in the development of internal dashboards, data entry applications, CRM systems and reporting interfaces.

Visualization and Charting Tools

Insurance claim processing involves multiple files and systems. Testing includes checking field-level mapping, anonymization, compliance with HIPAA, and timely handling of rejections or errors.

Desktop Software

Productivity tools, configuration utilities, media players, and other consumer desktop apps are built using WPF when a modern and responsive UI is needed.

Custom Interfaces

WPF supports creating non-standard, branded user interfaces with animations, custom controls, and advanced layouts.

Key Features of WPF

  • XAML-Based UI Design
    Allows separation of layout from logic, making it easier to design and maintain applications.

  • Data Binding
    Automatically keeps the UI in sync with underlying data models.

  • Templates and Styles
    Enables full customization of UI components without changing their core behavior.

  • Graphics and Media Support
    Built-in support for vector graphics, 2D/3D rendering, video, and audio playback.

  • MVVM Pattern Support
    Encourages a clean separation of concerns using the Model-View-ViewModel architecture.

  • Integration with .NET Libraries
    Full access to the .NET Base Class Library for networking, file I/O, security, and more.

Pros and Cons of Batch System Testing

Pros

  • Enables development of visually rich and modern interfaces

  • High level of customization through styling, templates, and control composability

  • Good performance for complex and data-heavy desktop applications

  • Strong support for MVVM, making the codebase more maintainable and testable

  • Tight integration with Windows and the .NET ecosystem

  • XAML makes design and layout more structured and readable

Cons



  • Only runs on Windows, making it unsuitable for cross-platform development

  • Has a learning curve, especially for developers new to XAML or MVVM

  • Can become complex when working with deeply customized controls or animations

  • Slower startup time compared to lightweight UI frameworks

  • Development tools (such as Visual Studio Designer) may lag behind in responsiveness for larger projects

Final Thoughts

WPF is a powerful choice for building professional-grade desktop applications on Windows. It combines the flexibility of XAML with the performance and capability of the .NET platform, making it ideal for developers who need control over design, layout, and functionality.

While it may require time to master, especially for those new to desktop development, WPF remains a solid and proven framework for delivering robust and visually compelling Windows applications.
