Spring Batch

Fast. Reliable. Repeatable

Spring Batch is a Java-based framework designed to help developers build and run batch processing jobs especially when those jobs need to handle large volumes of data in a reliable and repeatable way.

Spring Batch part of the larger Spring ecosystem which means it fits nicely alongside other Spring tools like Spring Boot, Spring Data, and Spring Security. But its purpose is very specific: to support batch jobs. These are tasks that run in the background, often outside the regular flow of a web application such as:

  • Processing a million records from a database
  • Reading files and transforming the data
  • Sending out thousands of invoices or emails
  • Generating daily reports

These processes are not things that happen in response to a user clicking a button they are scheduled, structured jobs that run behind the scenes. Spring Batch helps manage all of that.

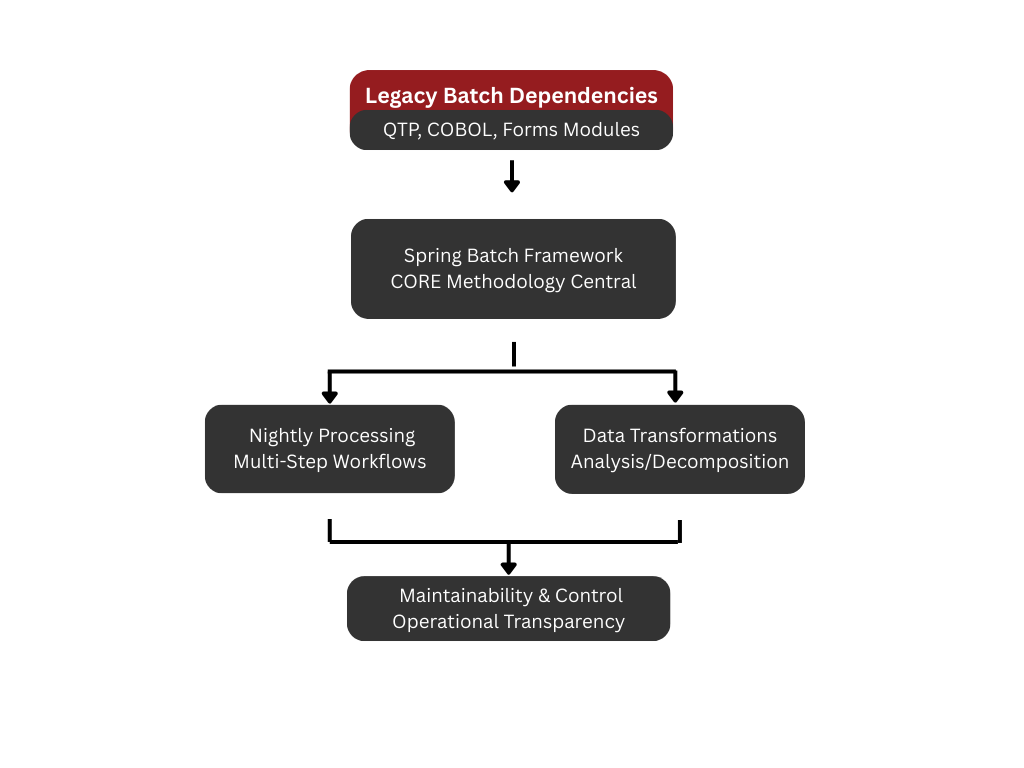

Using Spring Batch in Legacy Migration and Modern Application Development Projects

Spring Batch plays a central role in CORE’s modernization methodology by providing a robust, scalable, and highly configurable framework for batch-oriented processing. Legacy applications, especially those originating from PowerHouse QTP, COBOL batch programs, Oracle Forms batch modules, or other procedural systems—often rely heavily on nightly processing, periodic data transformations, and multi-step business workflows. During a migration project, these legacy batch routines are analyzed, decomposed, and re-engineered into modern Spring Batch Jobs, which offer improved maintainability, transparency, and operational control.

What Happens to Data Models and Records During the Migration?

Legacy batch routines often depend on sequential files, ISAM datasets, IMAGE databases, PowerHouse subfiles, and other proprietary data structures. During modernization, these structures are normalized into relational tables in Oracle, SQL Server, or PostgreSQL. Spring Batch integrates with the Data Access Layer—often via MyBatis or JPA repositories—to stream relational data at large scale. Readers and writers are configured to map relational records to Java POJOs, ensuring strong typing and consistency across the new application architecture. Spring Batch’s chunk-based processing model allows legacy logic to be preserved while taking advantage of modern transactional boundaries and performance optimizations.

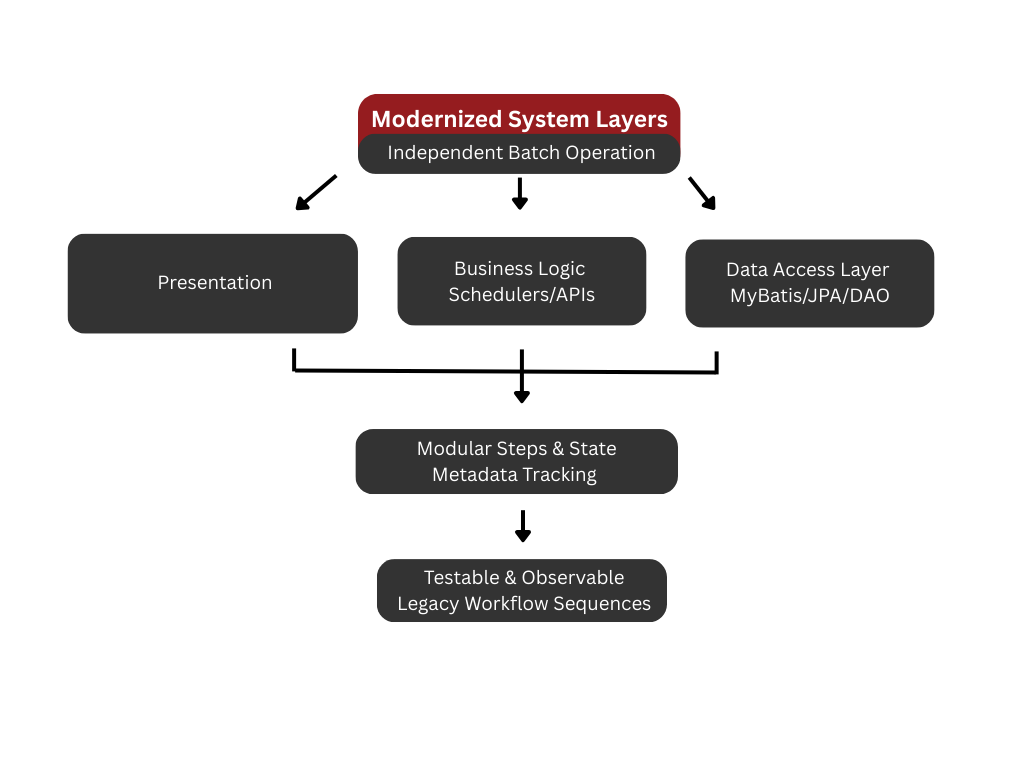

How Spring Batch Fits into the New Application Architecture

In the modernized system, Spring Batch operates independently of the Presentation and Business Logic layers. Batch components are invoked by schedulers, operational controllers, or API-driven triggers within the Business Logic layer. These components interact exclusively with the Data Access Layer through MyBatis, JPA, or DAO abstractions. This separation ensures that batch jobs are modular, testable, and operationally observable. Complex legacy workflows are broken into clear sequences of Steps, and state is tracked through Spring Batch metadata tables, providing full visibility into job execution.

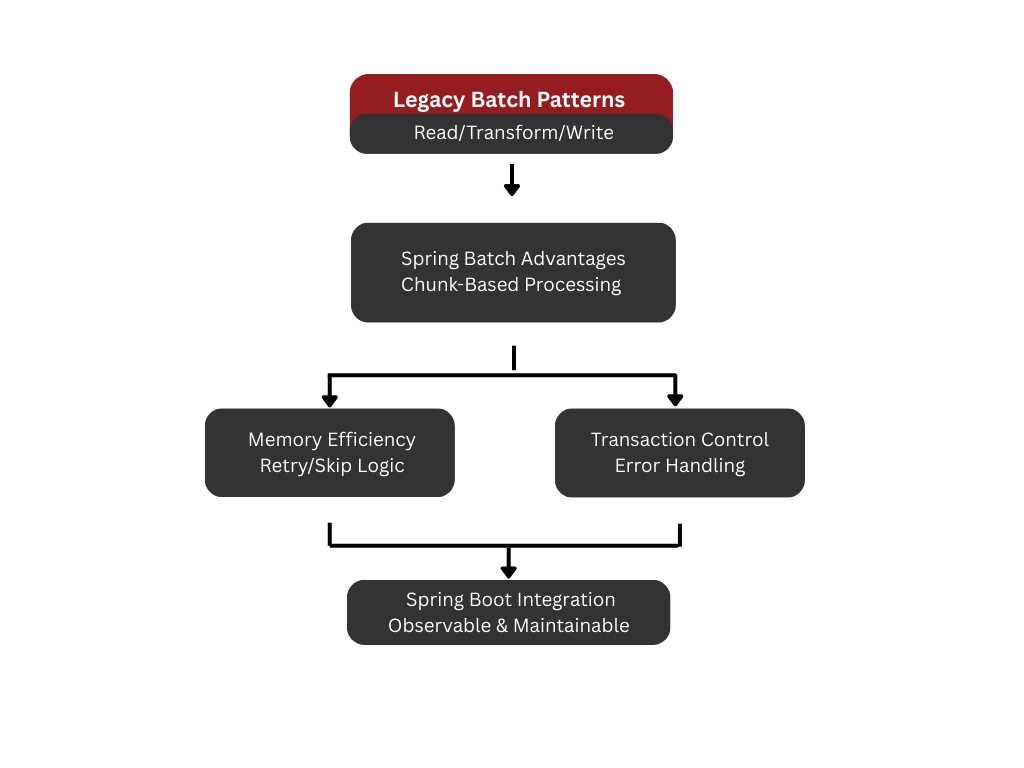

How Spring Batch Supports Business Processes

Spring Batch is particularly well suited for legacy modernization because many legacy batch routines follow a pattern of reading large volumes of data, transforming them according to business rules, and writing updated records back to persistent storage. Spring Batch’s chunk-based processing enables efficient memory use and transactional control. Retry, skip, and error-handling mechanisms allow for fault tolerance that exceeds what was possible in legacy environments. Combined with Spring Boot and modern orchestration tools, Spring Batch provides an operational environment that is predictable, observable, and highly maintainable.

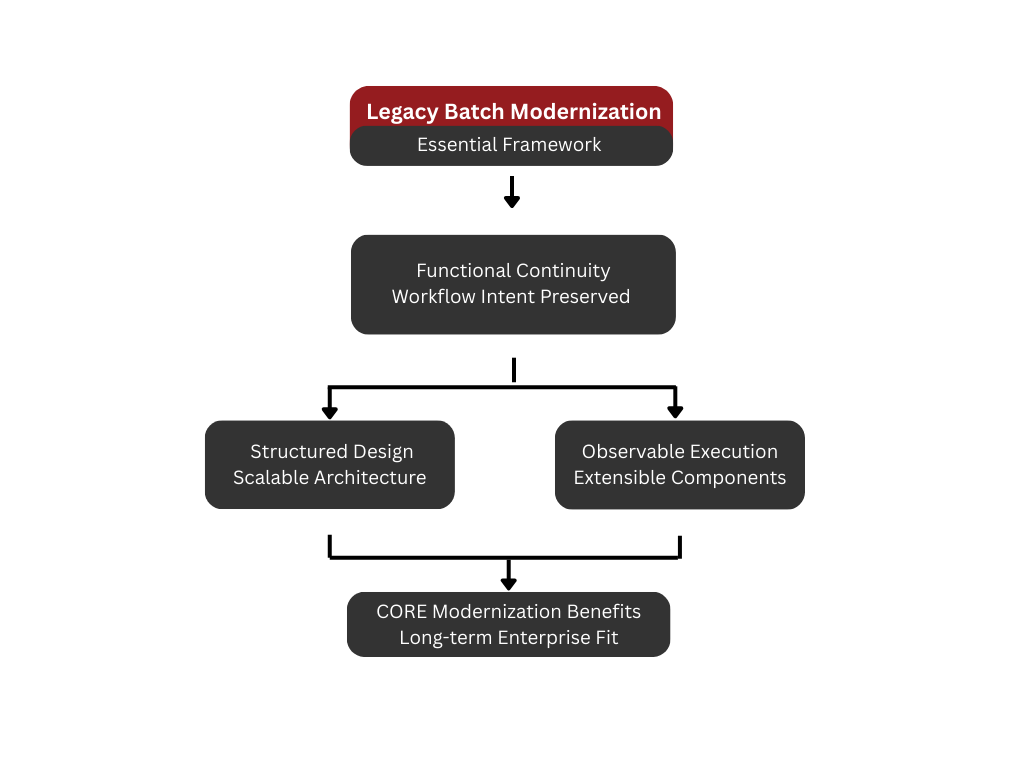

Conclusion

Spring Batch is essential for bringing legacy batch operations into a modern, scalable, and maintainable architecture. It preserves the intent of legacy workflows while providing a structured, observable, and extensible framework that supports current enterprise requirements. By re-engineering legacy processing into Spring Batch components, CORE ensures that organizations gain both functional continuity and long-term modernization benefits.

What Is Spring Batch Used For?

Spring Batch is used any time a company needs to process large amounts of data, repeatedly and reliably. That might mean reading in a CSV file with thousands of customer records, cleaning the data, writing it to a database, and then logging what happened—all while handling errors, retries, and performance issues.

Here are some of the most common use cases:

1. Data Migration

Organizations often need to move data from one system to another. Maybe you are upgrading a database or combining systems after a merger. Spring Batch lets you write jobs that pull data from one place, transform it, and load it somewhere else.

2. ETL (Extract, Transform, Load)

This is a classic use case. If your business pulls in raw data from external sources (like APIs, spreadsheets, or FTP servers), Spring Batch helps you process that data, format it, clean it, validate it and load it into your system or data warehouse.

3. Scheduled Reports and Data Exports

You can schedule batch jobs to run at certain times (like every night or once a week) to generate reports, pull metrics, or export data into files for third-party systems.

4. Bulk Data Operations

Sometimes you need to perform the same update on thousands of records—like adjusting pricing, fixing missing fields, or flagging users. Doing this in real time would slow things down. With Spring Batch, you can run these operations in the background.

5. End-of-Day or Month-End Jobs

In banking, financial, retail, and other industries, certain actions must happen at the end of a day or month. Spring Batch handles these scheduled, rule-based processes well, and provides tools for tracking their status and outcomes.

How Spring Batch Works in Practice

At a high level, Spring Batch breaks down your job into three main steps:

  1. Read – Get the data from somewhere (a file, a database, a queue, etc.).
  2. Process – Do something with the data (validate it, transform it, apply logic).
  3. Write – Store the result somewhere else (a database, a file, an email, etc.).

This structure is called the chunk-oriented processing model, and it is designed to be efficient and safe. Rather than loading millions of records into memory, Spring Batch processes data in chunks, say, 100 items at a time. That way, even if a job processes huge data sets, memory and performance stay under control.

Here is what a typical Spring Batch job includes:

  • Job – The overall task (e.g., “process orders”)
  • Steps – The pieces that make up the job (e.g., “read orders”, “validate data”, “save results”)
  • ItemReader – A component that reads the input data
  • ItemProcessor – A component that processes each item
  • ItemWriter – A component that outputs the result

You also get tools for:

  • Logging and auditing



  • Job restarts and retries



  • Parallel processing



  • Handling errors without stopping the job



All of this makes Spring Batch ideal for mission-critical systems, where accuracy and traceability matter just as much as performance.

Pros and Cons of Spring Batch

Pros

  1. Built for Large-Scale Data
    Spring Batch is designed to handle jobs that involve thousands or even millions of records. It’s optimized to process large data sets efficiently, without putting too much load on memory or databases.
  2. Robust Error Handling and Retry Mechanisms
    Jobs rarely go perfectly. With Spring Batch, if something fails, you can define exactly how to retry, skip bad records, or roll back safely. That’s essential in systems where bad data shouldn’t crash everything.
  3. Job Monitoring and Tracking
    Spring Batch tracks job runs with metadata—so you know which jobs ran, when, what they did, and whether they succeeded or failed. You can even restart a failed job from where it left off.
  4. Integration with Spring Boot
    Spring Batch works beautifully with Spring Boot, making configuration easier and letting you take advantage of dependency injection, environment setup, and external configuration.
  5. Flexible and Extensible
    You can customize pretty much everything—from readers and writers to processors and schedulers. It’s not a black box. If your job logic is unusual, Spring Batch won’t get in the way.

Cons

  1. Steeper Learning Curve
    Spring Batch has a lot of moving parts. If you are new to Java , batch processing or to the Spring ecosystem it might take time to understand how jobs, steps, chunks, and configuration all fit together.
  2. Not Meant for Real-Time Processing
    Spring Batch is great for background jobs, not for tasks that need to happen immediately when a user interacts with your application. For real-time processing, tools like Kafka Streams or Spring WebFlux may be more appropriate.
  3. XML Configuration Still Appears in Legacy Setups
    Although newer versions support full Java-based configuration, many examples and older projects still use XML, which can feel outdated and hard to manage.
  4. Can Be Overkill for Small Jobs
    If you just need to read a small file and update a few rows in a database, setting up a full Spring Batch job may be more work than it’s worth.

Final Thoughts

Spring Batch fills a very specific but important role: it helps you process data in bulk, safely and efficiently. If your organization deals with large volumes of data—or has systems that need scheduled, background jobs—Spring Batch is a framework worth knowing.

SringBatch is not glamorous. It runs quietly in the background. But it’s one of those tools that holds entire businesses together, powering reports, invoices, records, analytics, and all the small jobs that make a system complete.

When you combine the reliability of Spring Batch with the flexibility of Spring Boot and the structure of the Spring ecosystem, you get a powerful foundation for building robust, enterprise-grade software.
